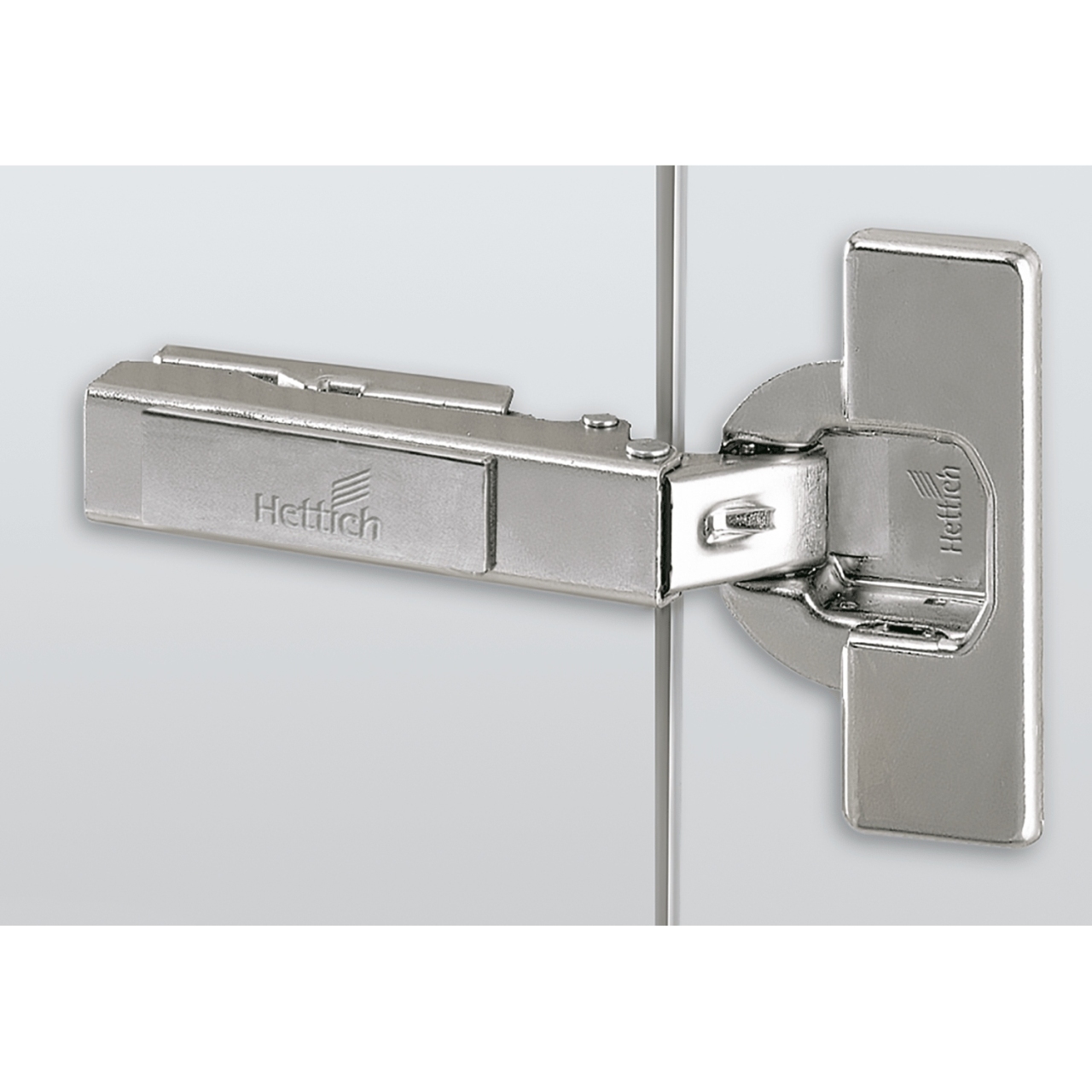

Intermat 110° – hinge with Self-Clouser, Full overlay, for screwing on (-)

Name: Intermat 110° - hinge with Self-Clouser, Full overlay, for screwing on (-)
SKU: 1029518
Price: 0.81 JOD
Availability: InStock

JD0.81

SKU: 1029518

Concealed hinge for clip on installation

Quality classification under EN 15570, Level 3

For door thickness of 15 – 25 mm

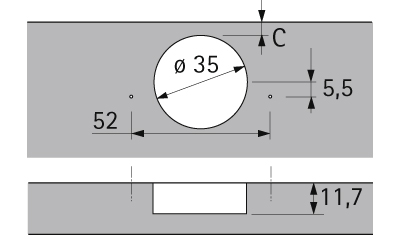

Cup diameter 35 mm

Cup depth 11.6 mm

Integrated +/- 2 mm overlay adjustment

Integrated depth adjustment + 2.5 mm / – 1.5 mm

Height adjustment at mounting plate

Hinge arm material: steel, nickel plated

Hinge cup material: steel, nickel plated

ORIGIN	Germany
