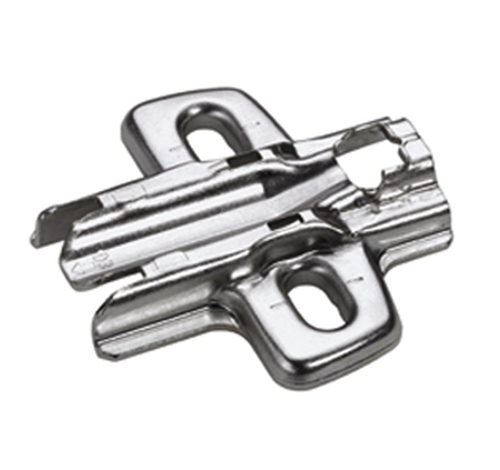

Cross mounting plate with Oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, Distance 1.5 mm

Name: Cross mounting plate with Oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, for screwing on, Distance 1.5 mm
SKU: 9071576
Price: 0.19 JOD
Availability: InStock

JD0.19

SKU: 9071576

Categories: Hettich Hinges, Hinges

Description

Additional information

Cross mounting plate mit Oblong hole Adjustment range

For Sensys and Intermat

Quality classification under EN 15570, Level 3

For Hole line 37 x 32 mm

Montage for screwing on

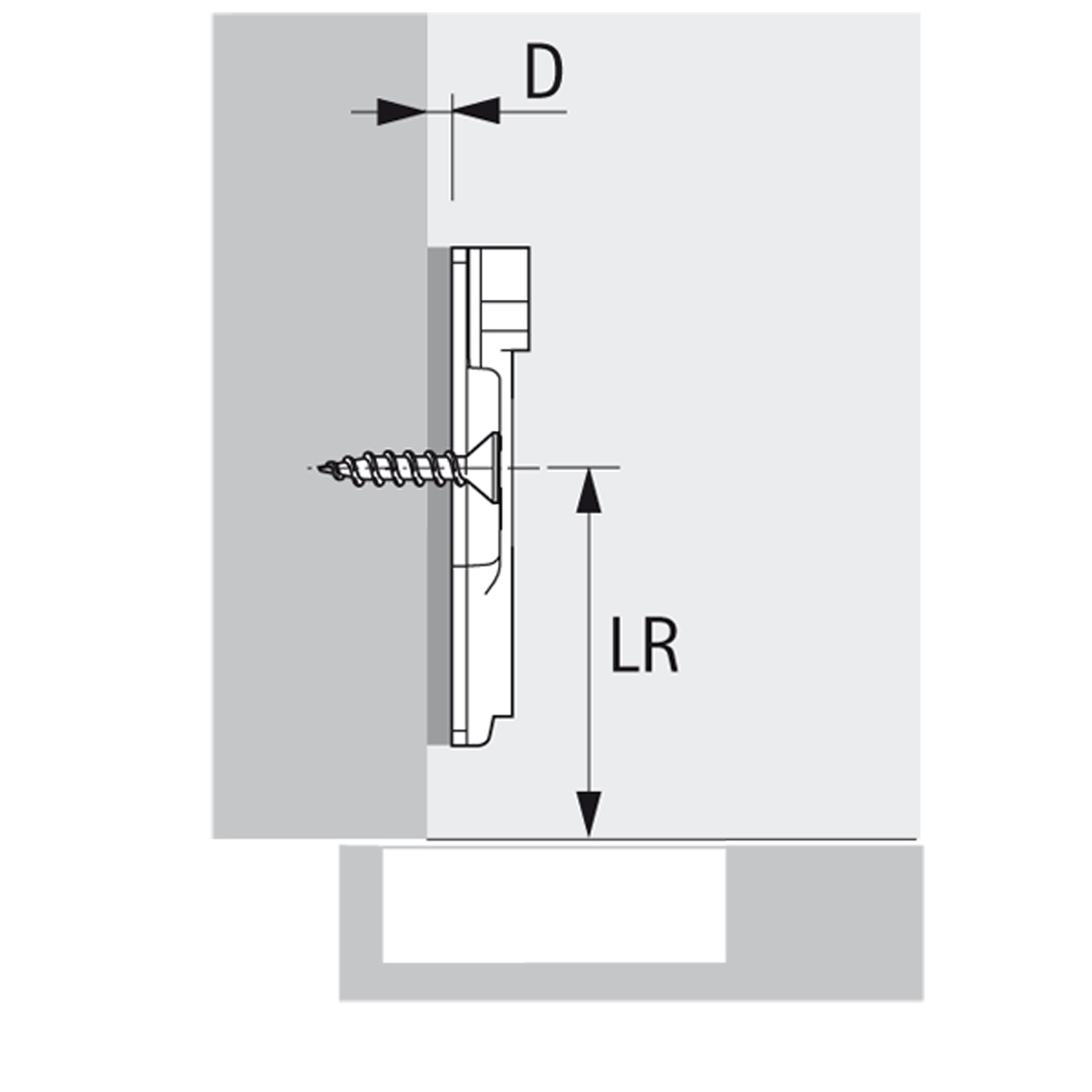

Distance 1.5 mm

Adjustment range + 3 mm / – 3 mm

steel nickel plated

ORIGIN	Germany
